Jeanneau Arcachonnais

Jeanneau Arcachonnais
Development
LocationFrance
Year1969
Builder(s)Jeanneau
RoleDay sailer-cruiser
NameJeanneau Arcachonnais
Boat
Displacement871 lb (395 kg)
Draft3.44 ft (1.05 m) with centerboard down
Hull
Typemonohull
Constructionfiberglass
LOA17.13 ft (5.22 m)
LWL16.17 ft (4.93 m)
Beam7.55 ft (2.30 m)
Engine typeoutboard motor
Hull appendages
Keel/board typestub keel with centerboard
Ballast198 lb (90 kg)
Rudder(s)transom-mounted rudder
Rig
Rig typeBermuda rig
Sails
Sailplanfractional rigged sloop
Total sail area150.00 sq ft (13.935 m2)

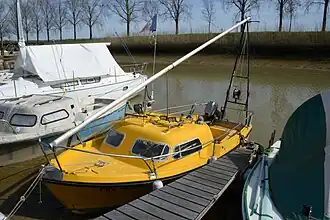

The Jeanneau Arcachonnais is a French trailerable sailboat that was designed as a day sailer and pocket cruiser, first built in 1969.[1][2]

Production

The design was built by Jeanneau in France, starting in 1969, but it is now out of production.[1][2][3][4]

Design

Arcachonnais

The Arcachonnais is a recreational keelboat, built predominantly of fiberglass. It has a fractional sloop rig, with a deck-stepped mast and aluminum spars. The hull has a raked stem, an angled transom, a transom-hung rudder controlled by a tiller and a fixed stub keel with a retractable centerboard. It displaces 871 lb (395 kg) and carries 198 lb (90 kg) of ballast.[1][2]

The boat has a draft of 3.44 ft (1.05 m) with the centerboard extended and 1.41 ft (0.43 m) with it retracted, allowing operation in shallow water or ground transportation on a boat trailer.[1][2]

The boat is normally fitted with a small outboard motor for docking and maneuvering.[1][2]

The design has sleeping accommodation for two people, with a double "V"-berth in the bow cabin.[1][2]

The design has a hull speed of 5.39 kn (9.98 km/h).[2]

See also

Arcachonnais, stern view
An Arcachonnais converted to a fishing boat

Similar sailboats

References

  1. ^ a b c d e f McArthur, Bruce (2022). "Arcachonnais (Jeanneau) sailboat". sailboatdata.com. Archived from the original on 19 September 2022. Retrieved 19 September 2022.
  2. ^ a b c d e f g Sea Time Tech, LLC (2022). "Arcachonnais (Jeanneau)". sailboat.guide. Archived from the original on 19 September 2022. Retrieved 19 September 2022.
  3. ^ McArthur, Bruce (2022). "Jeanneau (FRA)". sailboatdata.com. Archived from the original on 5 June 2021. Retrieved 19 September 2022.
  4. ^ Sea Time Tech, LLC (2022). "Jeanneau". sailboat.guide. Archived from the original on 18 April 2022. Retrieved 19 September 2022.
