419 series

419 series

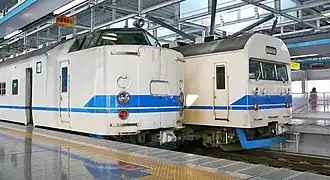

419 series trains at Fukui station, showing the differing cab end designs, April 2008
In service1985–2011
ManufacturerJNR
Constructed1967-1972 (as 583 series)
Refurbished1985 (converted from 583 series)
Scrapped2006–2012
Number built45 vehicles (15 sets)
Number in serviceNone
Number preservedNone
Formation3 cars per trainset
Fleet numbersD01-D15
OperatorsJNR (1985–1987)
JR-West (1987–2011)
DepotsFukui
Specifications
Car body constructionSteel
Car length20,500 mm (67 ft 3 in)[1]
Width2,950 mm (9 ft 8 in)
Doors2 per side
Maximum speed100 km/h (60 mph)[1]
Traction systemResistor control
Electric system(s)1,500 V DC / 20 kV AC (50/60 Hz)
Current collectionoverhead catenary
Track gauge1,067 mm (3 ft 6 in)

The 419 series (419系, 419-kei) was an electric multiple unit (EMU) train type introduced in 1985 by Japanese National Railways (JNR), and later operated by West Japan Railway Company (JR-West) on local services along the Japan Sea coast of Japan until March 2011. They were converted from former 583 series sleeping car EMUs in the 1980s.[1]

Formations

Sets D01-D09

KuMoHa 419 + MoHa 418 + KuHa 418

(MoHa 418 cars each had one PS16 pantograph.)[2]

Sets D10-D15

KuMoHa 419 + MoHa 418 + KuHa 419

(MoHa 418 cars each had one PS16 pantograph.)[2]

  • KuHa419
    KuHa419
  • MoHa418
    MoHa418
  • KuMoHa419
    KuMoHa419

Interior

History

419 series in original JNR livery in the late 1980s

The 419 series sets were converted from surplus former 583 series sleeping car EMUs and entered service from the start of the revised timetable in March 1985.[1]

Following the introduction of new 521 series EMUs in late 2006, two sets, D10 and D13, were withdrawn in March 2007.[3] The remaining sets were finally withdrawn on 11 March 2011.[4]

KuHa 418-1 from set D01 was preserved at a locomotive scrapping facility in Takaoka starting in 2012; it was removed from display around November 2021 and subsequently scrapped.

See also

  • 715 series, similar EMUs used in the north-east Japan and northern Kyushu

References

Wikimedia Commons has media related to JNR 419.
  1. ^ a b c d Jēāru zensharyō handobukku: Rail Magazine 2009 JR全車輌ハンドブック2009 [JR Rolling Stock Handbook 2009]. Japan: Neko Publishing. 2009. p. 303. ISBN 978-4-7770-0836-0.
  2. ^ a b JR電車編成表 2009夏 [JR EMU Formations - Summer 2009]. Japan: JRR. June 2009. ISBN 978-4-330-06909-8.
  3. ^ 北陸地方の車両に注目！ [Focusing on Trains in the Hokuriku Region]. Tetsudō Daiya Jōhō Magazine. 39 (311): 11–41. March 2010.
  4. ^ さよなら「食パン列車」「雷鳥」 １１日ラストラン [Goodbye to the "Sliced Bread" and "Raicho" Trains]. Ishikawa News (in Japanese). Japan: The Hokkoku Shimbun. 11 March 2011. Archived from the original on 16 March 2011. Retrieved 11 October 2011.

Further reading

  • Sato, Tetsuya (November 2013). 交直流電車419系 [419 series AC/DC EMU]. Train (in Japanese). 39 (467): 6–21.
